X500 SwimCross™ Exercise Systems
Wellness that fits your life.

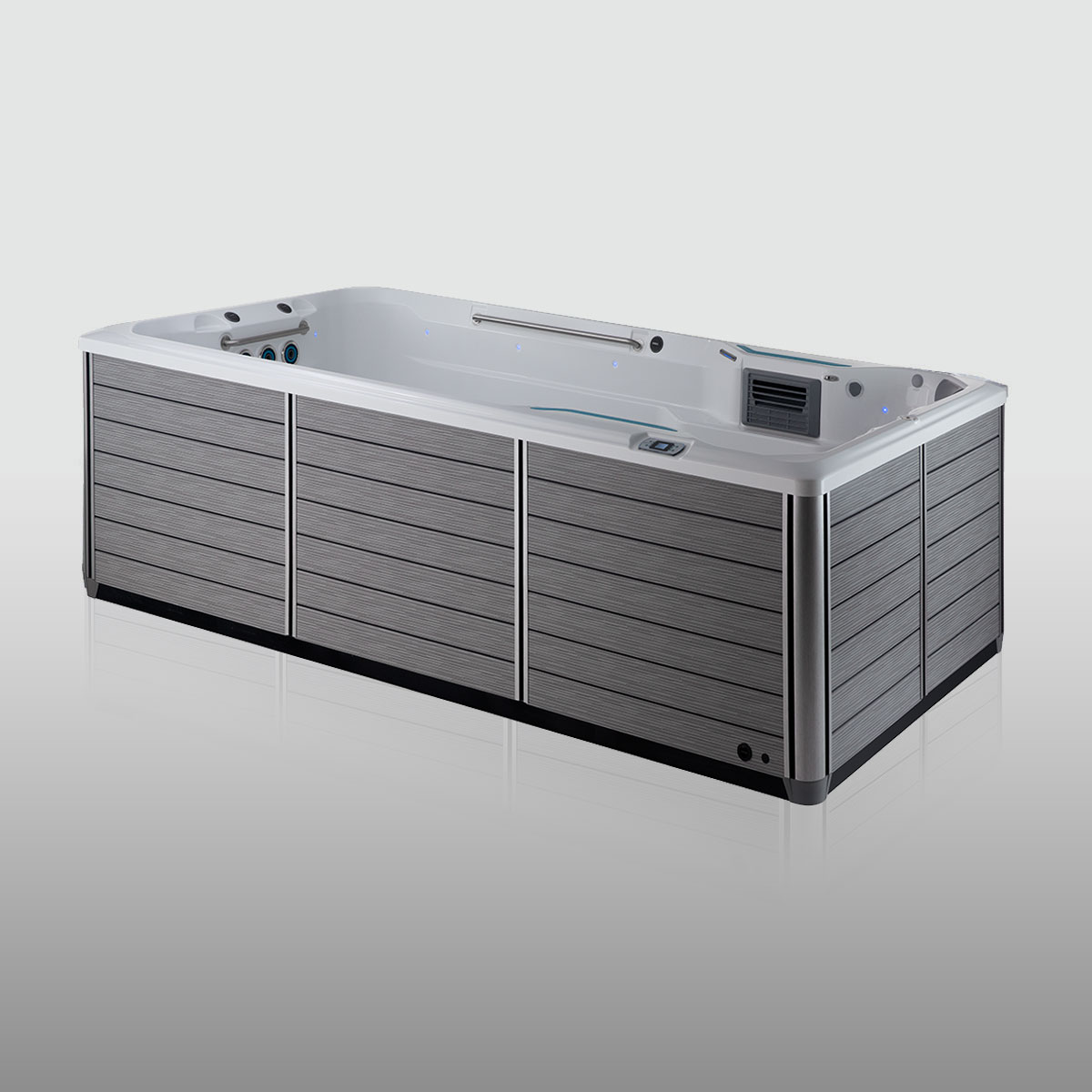

Nothing is more refreshing or rejuvenating than a swim or an aquatic workout in the privacy and convenience of your own home. Endless Pools®, the makers of SwimCross™ Exercise Systems, introduces the X500. Not only visually stunning, the X500 was purposely designed for any level of user to attain a complete body workout.
With its generous swim and exercise area, along with easy entry and variable speed swim jet system, the X500 takes backyard fitness to a whole new level. It’s time to put wellness into your daily routine.
|Dimensions||15′ L X 50″ H X 89″ W|
|Water Capacity||1,650 Gallons|
|Weight||2,670 lbs. (Dry) / 18,185 lbs. (Filled*)|
|Shell Color Options||Alpine White or Ice Gray|
|Cabinet Color Options||Dark Mocha or Gray Oak|
|Swim Technology||5 Swim Jets – Max 320 Gallons Per Minute|
|Swim Jet Pumps||2.5 HP Continuous Duty; 5.2 HP Breakdown Torque – (1) Single Speed & (1) Dual Speed|
|Hydromassage Jets – 27||1 Large Jet 2 Rotary Jets 2 Directional Jets 22 Mini Jets|
|Hydromassage Jet Pump||2.5 HP Continuous Duty; 5.2 HP Breakdown Torque – Dual Speed Pump|
|Control System||LCD Control Panel; 230v/60amp, 60 Hz, includes G.F.C.I. protected sub-panel|
|Water Feature||2 Illuminated Waterfalls|
|Water Management System||UVC + CD Ozone|
|Effective Filtration Area||4 x 50 Square Feet|
|Lighting System||Multi-Color 16 LED Lights & 5″ Main Light|
|Substructure||14-Gauge Galvanized Steel Frame|
|Base Pan||Thermoformed ABS Base Pan|
|Energy Efficiency||Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California Law|
|Stainless Steel Grab Rails||3 Satin Stainless Steel Rails|
|Music Option||8 Speakers + Subwoofer, Bluetooth® Enabled|
|Exercise Equipment Options||Swim Tether and Rowing Kit|
|Vinyl Cover & Lifter Options||Endless Pools® Bi-Fold Covers & Lifters or VacuSeal® Cover System|
|Additional Options||Floor Mirror, Gecko® In.Touch Wi-Fi & Mobile App|
|*Includes water and 10 adults weighing 175 lbs. each|

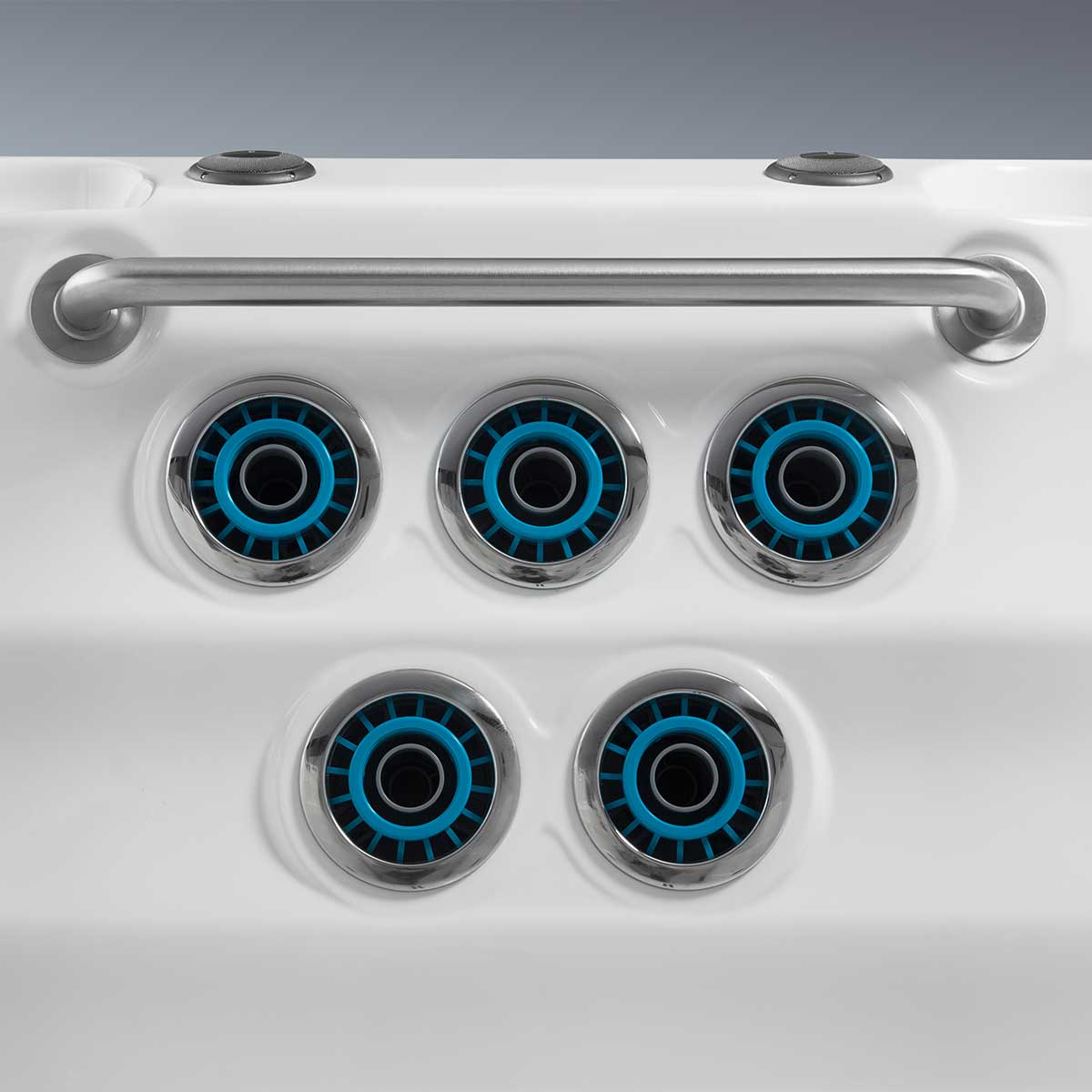

The swim jets in SwimCross Exercise Systems are designed for both swim and water-workout options suitable for all ages, sizes and skill levels. A total of five swim jets, driven by two pumps, provide a steady stream of water that is more powerful than the average jet. The swim jet uses a venture effect, not air, to draw-in or entrain more water, effectively multiplying the volume of water. This design feature results in stronger resistance for swimming with less turbulence than other swim spas on the market. And, swimmers will find it easier to stay centered and afloat, thanks to the jet configuration, which is designed for the top jets to provide resistance while the bottom jets provide lift. Simply toggle the three top jets between two speeds and the two bottom jets between on and off – a total combination of five output levels – for easy workout customization.
Spa Seating with Hydromassage Jets

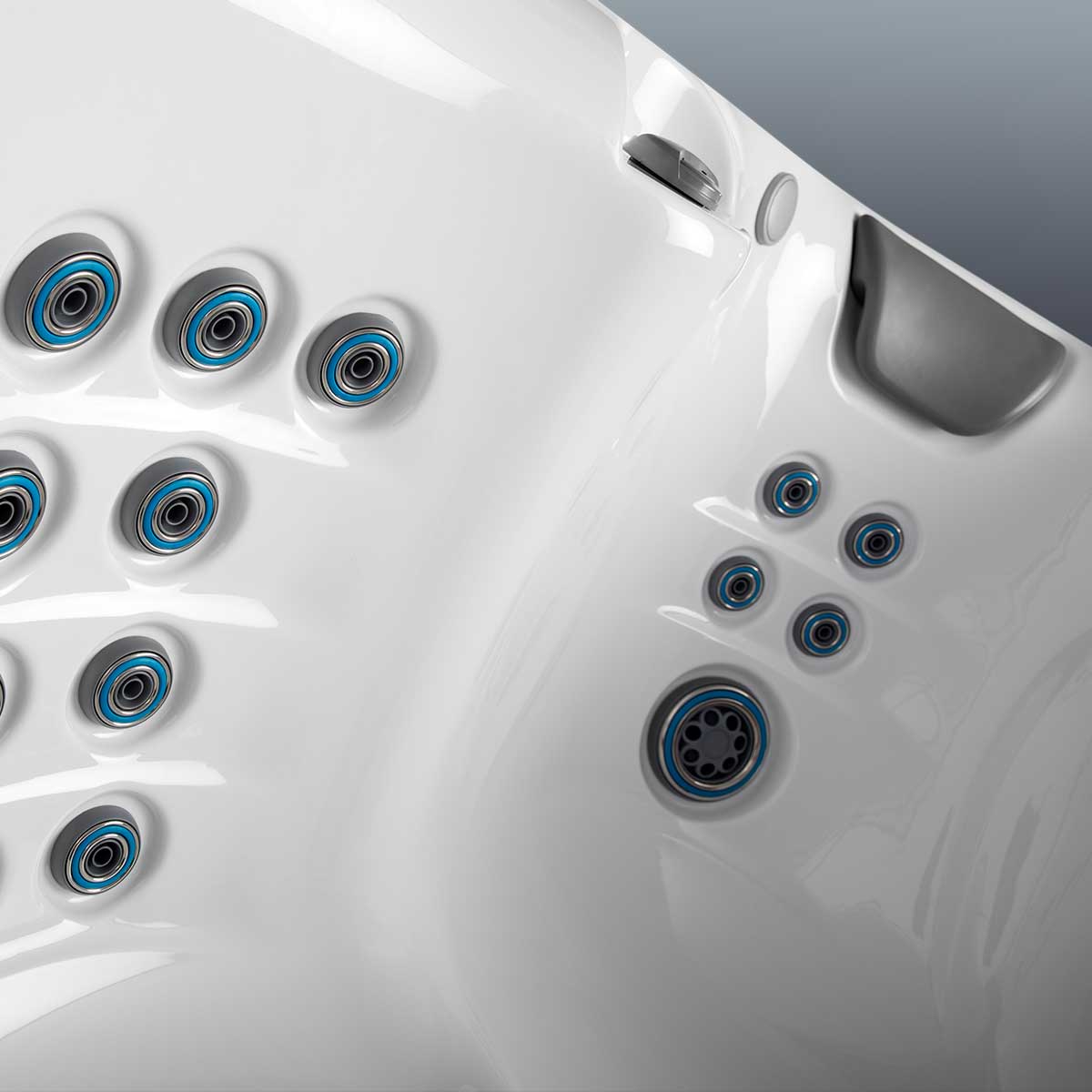

Following your workout, there is nothing like a “cool-down” in the comfort of spa seating here hydromassage jets soothe your muscles. Perfectly positioned in two captain’s chairs with pillows, plus a third middle seat, four jet types are combined in three configurations to deliver an ideal post-workout relaxation experience.
Mini Jet – A small and focused stream of water targets specific areas.
Directional Jet – Similar to the mini, the directional jet is focused but with a larger stream of water.
Rotary Jet – Same level of water pressure as the directional jet, but rotates to create a circular massage pattern to cover a larger area.
Cluster Jet – A unique soft tissue massage targets the lower back.
The stunning lighting of SwimCross Exercise Systems delivers maximum design impact. Its 5” main interior light and multi-color LED points of light provide ample brilliance and beauty. The water feature is also backlit for added elegance.
Water Management System
SwimCross Exercise Systems use a dual water purification system that combines Ultraviolet C (UVC) with eco-friendly CD Ozone, commonly known as Advanced Oxidation Process (AOP), to neutralize contaminants. Water is circulated through the hydromassage pump on low speed for regular water circulation and optimal water quality.
Keeping your energy bill low is important. The Tri-Thermic™ Barrier System, a standard feature on all Fitness and Exercise Systems, provides three layers of insulation to conserve heat, enhance the energy efficiency, and lower operating costs.
The system’s three layers include a three-quarter inch, two-pound density EPS (Expanded Polystrene) foam and reflective film attached to the inside of the cabinet, combined with two-inch think heat blanket made of high-quality recycled textile fibers and foil film, attached to the inside of the steel frame. Together these materials provide maximum thermal performance.
The Tri-Thermic Barrier System achieves certification to current California Energy Commission (CEC) and APSP 14 National Standards and already meets the upcoming 2018 CEC standards.
SwimCross Exercise Systems feature an LCD control panel that makes it easy to navigate component controls. Functions include on/off, water temperature and water care management, as well as control of the interior lighting, and hydromassage jets.
By installing the optional plug-and-play Gecko® In.Touch Wifi and Mobile App, you’ll gain full control of the system’s temperature, lights and jets from any wifi-enabled tablet or mobile device, anywhere, anytime.
Anchors and Handrails for Aquatic Fitness Accessories
Every fitness and exercise system is equipped with built-in anchors to attach fitness accessories including an optional swim tether, row bar set and resistance bands. The convenient and sturdy handrails are also great for support or for attaching resistance bands.
14-Gauge Steel Frame & ABS Base Pan
This model is built on an extremely durable, 14-gauge galvanized steel frame and ABS base pan. While many see this as an area to cut costs, Endless Pools went a cut above the rest by making this a standard feature on all products. The structural elements of the steel frame and ABS base pan provide the ultimate strength to deliver confidence in ownership for years to come.
SwimCross Exercise Systems
Rowing is an exceptional cardiovascular exercise that keeps the heart rate elevated and strengthens core muscles. Attach resistance bands to the sturdy handrails for added workout options.
Set up the performance of any Fitness or Exercise System with the optional rowing and resistance gear. Attach the optional row bars to the built-in anchors and/or handrails to experience a low-impact, full body workout.
All models come equipped with an anchor for attaching our optional Swim Tether. For beginning swimmers or for anyone looking to improve his or her swimming form, it provides added stability and assistance in maintaining your body position in the current.
A real money-saver, the Watkins bi-fold cover helps maintain heat and reduce evaporation. It can be used on its own or with the Watkins Lifter System. The Watkins Lifter System lets you install the cover vertically, which is also a space saver.
The VacuSeal Lifting System’s unique design ensures a tight seal between covers, which prevents heat loss and evaporation and optimizes efficiencies. It uses a patented “Reverse Pneumatic Technology” which applies downward pressure on the cover to vacuum seal the two covers together, eliminating the center gap, commonly found with traditional covers. Also, this technology lends itself to easier operation of the cover system especially by a single user.
See yourself swim in place and refine your form for improved performance with the optional 24” x 51” stainless steel mirror. Placed on the floor of any Fitness or Exercise System, its weight distribution ensures that the mirror stays securely in place.
For exercise or backyard enjoyment, nothing sets the mood like our optional, integrated 8-speaker system and subwoofer. It’s easy to set up: simply pair any Bluetooth-enabled device to the system through the control panel to listen to your favorite music anytime.
Ask your Endless Pools® retailer about installation of the optional plug-and-play Wifi and Mobile App. With this added feature, you’ll gain full control of the system’s temperature, lights and jets from any Wifi-enabled tablet or mobile device.
Put full workout functionality at your fingertips! With the Fit@Home App you can adjust the speed controls, monitor workout pace, duration and time, and set up workout programs specific to your goals from your smartphone or tablet.
Ideal for warm climate areas and for use during summer months, when cooler water temperatures are preferred, CoolZone works with the Fitness System heater to efficiently cool or heat the water.
